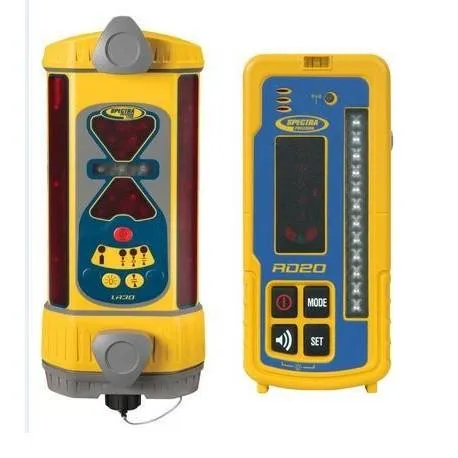

Spectra Precision LR30W Laser Receiver with UNV Charger, Radio & Remote Display

Product overview

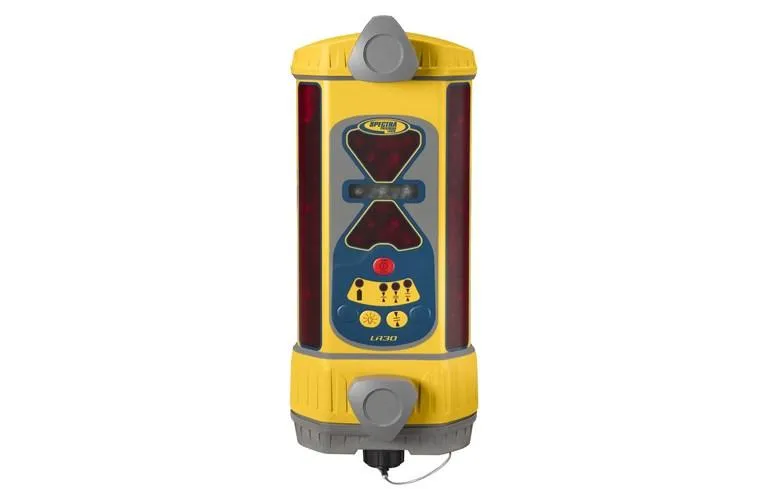

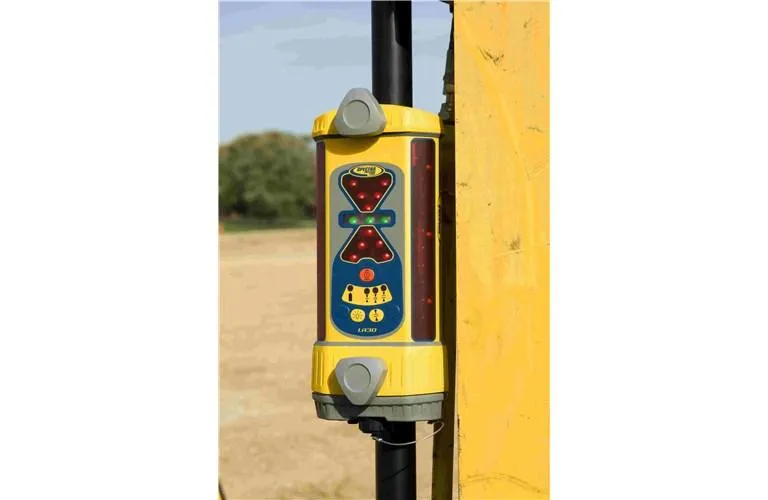

The Spectra Precision LR30 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment including dozers, backhoes, excavators, scrapers, skid steers, and levelers. The versatile, easy-to-use LR30 features 360-degree laser detection and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR30 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics. The LR30W is designed to work with the RD20 Remote Display.

Features

• Three selectable accuracy settings allowing the user to rough grade through to final finish
• Full 360-degree reception - picking up the laser beam wherever you are working reducing downtime and eliminating errors
• Choice of batteries and mounting kit packages LR30W provides a wireless link to RD20 remote display that can be placed in a cab operator peripheral vision so they concentrate on what is happening at the bucket or blade
• Robust and built for job site environment - 2-year warranty
• Five channels of grade information plus directional out-of-laser beam indicator direct which way to move and get back in the beam
• Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility
• Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions

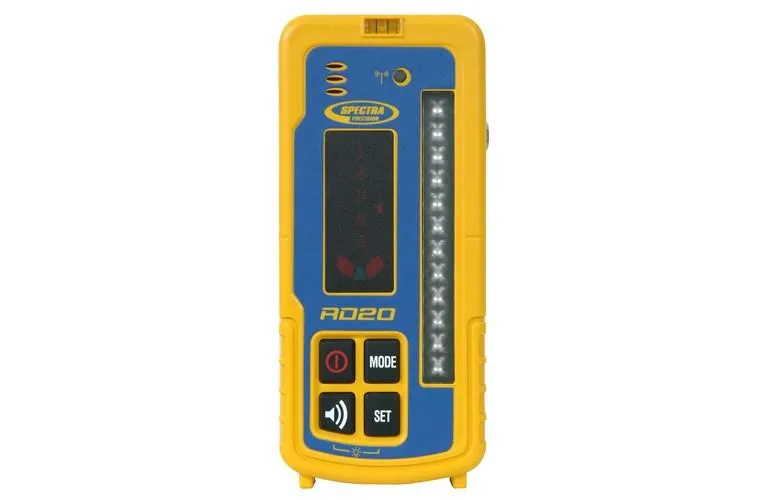

• LR30W is used with Spectra Precision RD20 Wireless Remote Display



Includes:

• LR30W (wireless)
• NiMH batteries
• Charger
• RD20
• RD20 Machine Power Cable



Specifications

Number of Display Channels	5-Channel Display
Accuracy: Center on grade mode (grading)	Fine: 5 mm (0.20 in) Standard: 12 mm (0.45 in) Wide: 32 mm (1.25 in)
Accuracy: offset on grade mode (excavating)	NA
ACE-Angle Compensation Mode	NA
Blade-Tilt Accuracy	NA
Plumb-Swing Accuracy	NA
Vertical Reception	171 mm (6.75 in)
LED Battery Life
Alkaline Bright/Dim	50 / 75 hrs
Wireless with remote on	30 / 40 hrs
Ni-MH Bright/Dim	40 / 50 hrs
Wireless with remote on	20 / 30 hrs
Receiver Warranty	2 Years
