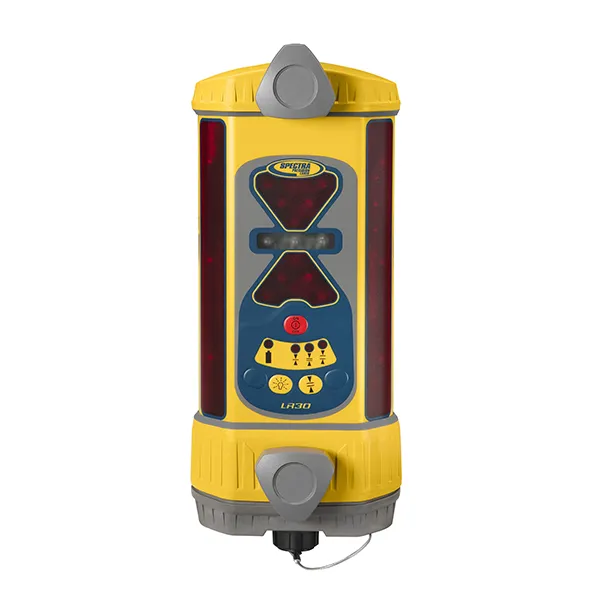

Spectra Precision LR30 Laser Machine Display Receiver

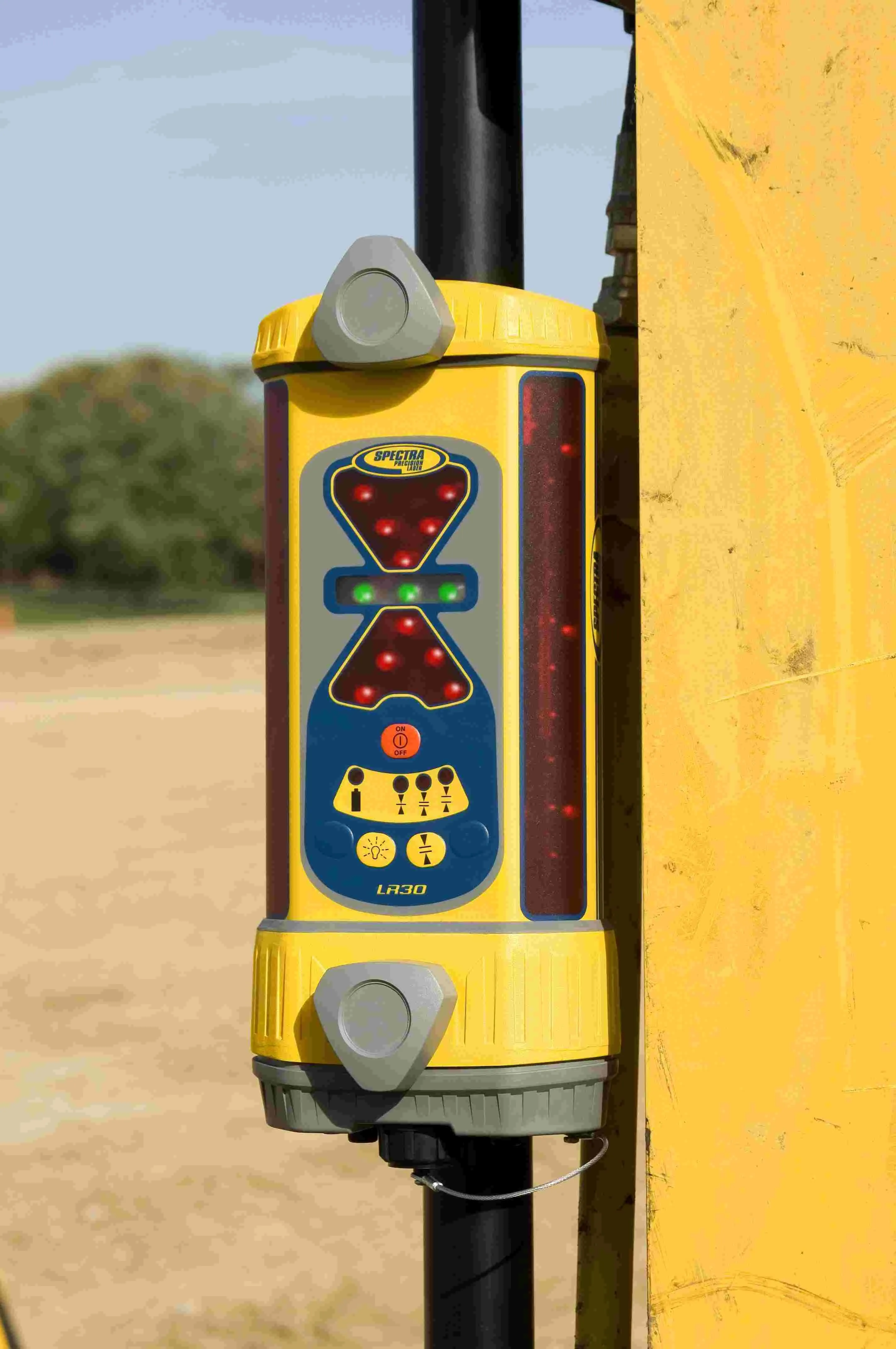

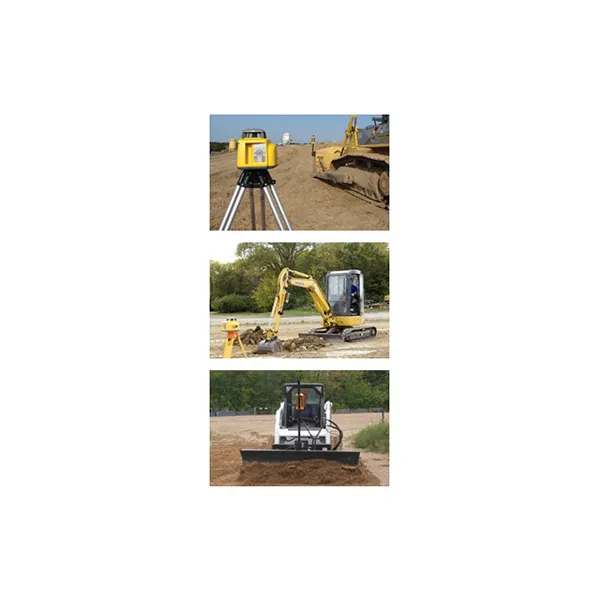

The Spectra Precision® LR30 Laser Machine Display Receiver is designed to be used as a stand-alone display receiver on grading and excavating equipment.

The versatile, easy-to-use LR30 features 360-degree laser detection and works with all types of rotating lasers on all types of machinery for fast, no-hassle setup. Rugged and waterproof, the LR30 receiver withstands all weather environments. Internal isolating shock mounts protect the electronics.

Features

Five channels of grade information plus directional out-of-laser beam indicator direct which way to move and get back in the beam
Three selectable accuracies meet job tolerances from rough grading to final finishing for maximum flexibility
Adjustable, ultra-bright LED with green on-grade display provides user selectable, easy-to-see display to match ambient lighting conditions
LR30W is used with Spectra Precision RD20 Wireless Remote Display
2 Brightness settings to optimize visibility and reduce eye strain
7" photocell height for large laser reception

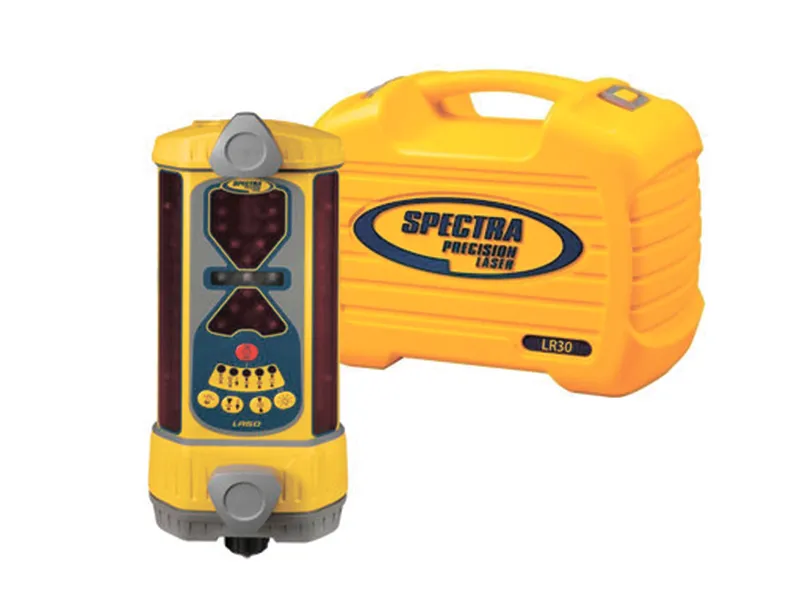

Includes:

LR30 Laser Receiver
Linear Display/Control
NiMH Battery
Case
Charger

Specifications

Number of Display Channels	5-Channel Display
Accuracy: Center on grade mode	Fine: 5 mm (0.20 in) (grading) Standard: 20 mm (0.80 in) Wide: 32 mm (1.25 in)
Vertical Reception	171 mm (6.75 in)
LED Battery Life	Alkaline Bright/Dim 50 / 75 hrs Wireless with remote on 30 / 40 hrs Ni-MH Bright/Dim 40 / 50 hrs Wireless with remote on 20 / 30 hrs
