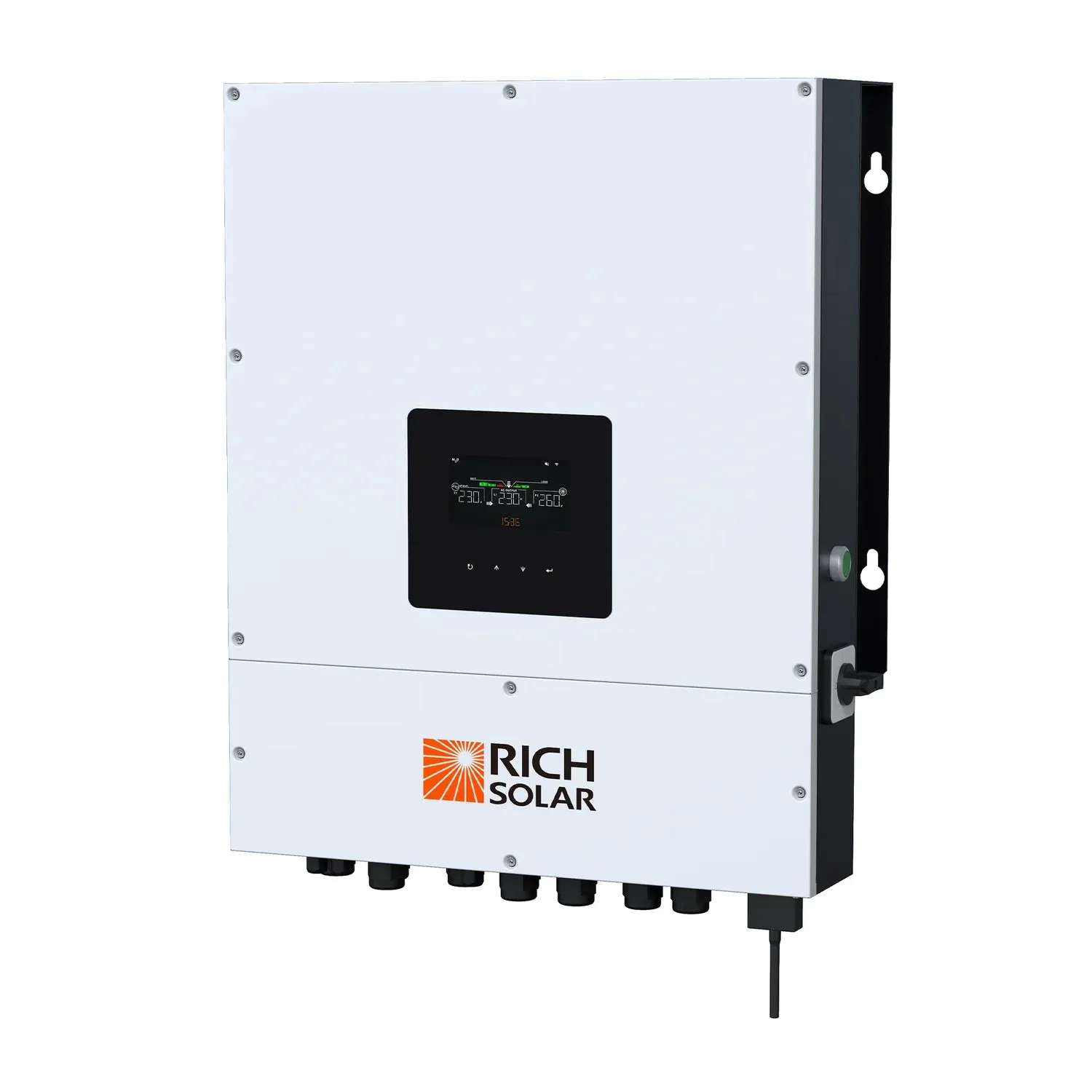

Rich Solar NOVA 8K | 8000 Watt (8kW) 48V Split Phase Hybrid Inverter | 8000W PV Input, 6000W Continuous Output 120/240V | Premium 8000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Features:

  • IP65 waterproof and dustproof makes the inverter available for various working conditions.
  • Configurable color with the built-in RGB LED bar
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Built-in alternative port for generator and emergent load.
  • Optional external CT sensor to guarantee 100% self-consumption.
  • Programmable supply priority for PV, Battery or Grid.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage.
  • Parallel operation up to 6 units

Specifications:

Brand Rich Solar
Model RS-H6048K
Parallel Capacity Yes, 6 Units
Input
  • Maximum PV Input Power: 7500W
  • Maximum DC Voltage: 600VDC
  • Start-up Voltage/initial Feeding Voltage: 120VDC/160VDC
  • MPPT Voltage Range: 120VDC-550VDC
  • Frequency Range: 50Hz / 60Hz (Auto detection)
Output
  • Rated Output Power: 6000VA/6000W
  • Output Voltage Waveform: Pure Sine Wave
  • Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
  • Output Voltage Range: 105.5-132VAC per phase
  • Nominal Output Current: 25A per phase
Battery
  • Battery Voltage: 40-62 VDC
  • Maximum Charging Current: 120A
  • Efficient(DC to AC): 91%
Operating Environment Operating Temperature Range: -25°C to 60°C(>45°C derating)
Phsyical
  • Dimension: 8.5x20.3x27.6in / 215.5x515x700mm (with extension box)
  • Net Weight : 90.4lb / 41kg
Resources
Rich Solar NOVA 8K | 8000 Watt (8kW) 48V Split Phase Hybrid Inverter | 8000W PV Input, 6000W Continuous Output 120/240V | Premium 8000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified
  • DefaultTitle

$ 57.23

$ 44.02
