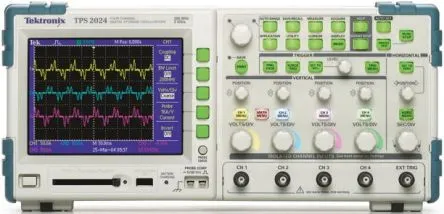

Product Details
＋
- 200 MHz Bandwidth
- 4 isolated analog channels, plus Isolated External Trigger
- 2.5 k standard record length on all channels
- 2 GS/s sample rate on all channels
- 8 Hours of Continuous Battery Operation with Two Batteries Installed, Hot Swappable for Virtually Unlimited Freedom from AC Line Power
- Optional Power Application Software offers the Broadest Range of Power Measurements at its Price Point
- Quickly Document and Analyze Measurement Results with OpenChoice Software or Integrated Compact Flash Mass Storage
- FFT Standard on All Models
- Advanced Triggers to Quickly Capture the Event of Interest
- Traditional, Analog-style Knobs and Multilanguage User Interface for Easy Operation
- Quick Setup and Operation with Autoset Menu, Autorange, Waveform and Setup Memories, and Built-in, Context-sensitive Help
- Backlit Menu Buttons for High Visibility
- 11 of the Most Critical Automatic Waveform Measurements
Rental - Tektronix TPS2024B Package Includes
- 1 - TPP0201 200 MHz, 10x passive probes (one per channel)
- 1 - Front Protective Cover
- 1 - AC Adapter with Power Cord
- 1 - User Manual
Download:
