Product Details
＋

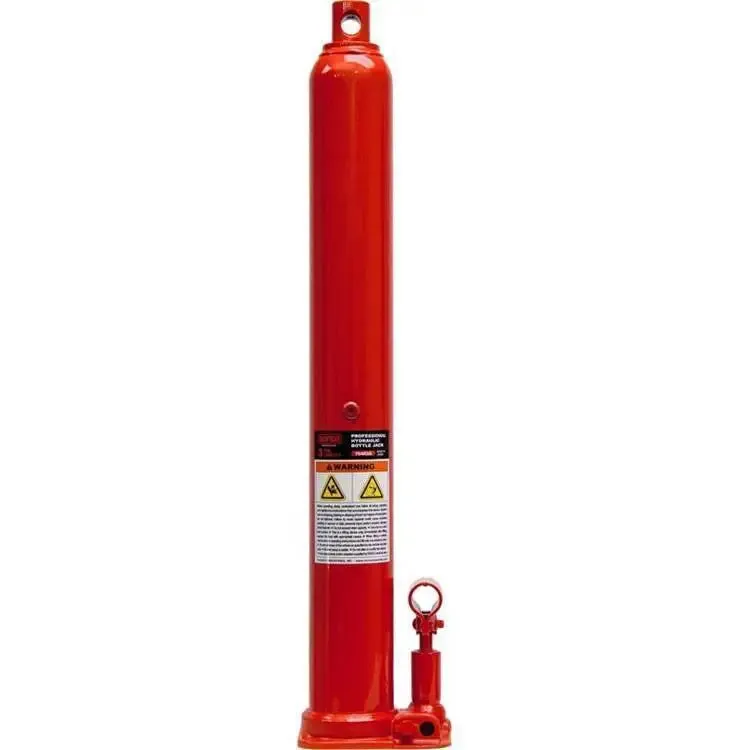

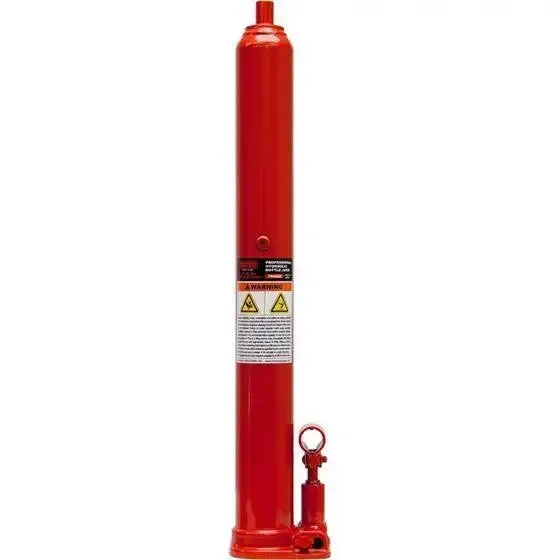

Norco long hand bottle jack is primarily used as original equipment for manufacturers of shop cranes, lift tables and any equipment requiring a long hydraulic stroke.
Features:
- Same as bottle jack features but designed with larger hydraulic units and larger ram diameters to withstand side loads.
- Larger diameter pump pistons for faster rising action.
- "Parkerized" rams and flash chromed pump pistons inhibit rust.
- Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
76402B
Low Lift Height: 22.6in
High Lift Height: 41.9in
Stroke: 19.3in
Screw Extension: --
Base Size: 4in x 4.56in
Carry Handle: No
Shipping Weight: 17.5 lbs.
76403B
Low Lift Height: 24in
High Lift Height: 43.5in
Stroke: 19.5in
Screw Extension: --
Base Size: 4.88in x 4.45in
Carry Handle: No
Shipping Weight: 24 lbs.
Low Lift Height: 22.6in
High Lift Height: 41.9in
Stroke: 19.3in
Screw Extension: --
Base Size: 4in x 4.56in
Carry Handle: No
Shipping Weight: 17.5 lbs.
76403B
Low Lift Height: 24in
High Lift Height: 43.5in
Stroke: 19.5in
Screw Extension: --
Base Size: 4.88in x 4.45in
Carry Handle: No
Shipping Weight: 24 lbs.
Application:
Shop cranesLift tables
